50HZ Reduction Brake Motor

  • Style Type：
  • Load (ton)：
  • Lift(m)：
Add to Inquiry list        Inquiry list

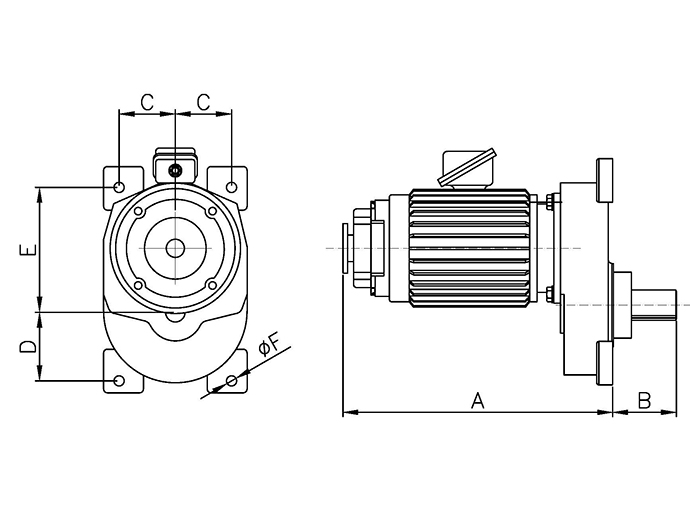

Model No.  Motor/ HP PH Reduction Ratio RMP Approx. Dimensions (mm) Gear & Pitch for Gear Wheel  Remark
A B C D E F
RM-25 0.25 4P 1/7.5 183 300 65 64 55 144.5 12 M3*11/13T Incuded Welded Base Plate
RM-50 0.5 4P 1/8.1 169 337 65 64 55 144.5 12 M3*11/13T
RM-100 1 4P 1/9.6 143 382 70 77.5 93 175 14 M3.5*11/13T
RM-200 2 4P 1/8.8 156 447 70 87.5 93.4 188.6 14 M4*11/13T
RM300 3 4P 1/19.7 70 497 70 85 100 125 18 M4*18T

NOTE:
Reduction brake motor can be selected with 4P/8P or 4P/12P
