50HZ Overhead End-Carriage

  • Style Type：
  • Load (ton)：
  • Lift(m)：
Add to Inquiry list        Inquiry list

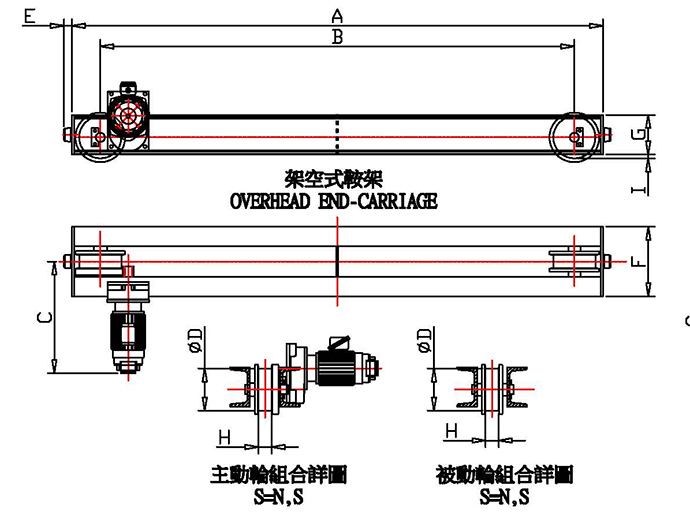

Model No. Speed Motor Approx. Dimension (mm) Rail
(m/min) (kw) A B C D E F G H I
YT-10 15-29 0.37x2 1500 1300 440 120 60 125 125 44 15 09-12 kg/m
YT-20 15-29 0.37x2 1800 1600 440 120 60 125 125 44 15 09-12 kg/m
YT-30A 15-30 0.37x2 1500 1280 490 150 60 150 150 50 15 12-15 kg/m
YT-30B 15-30 0.37x2 2000 1750 490 150 60 150 200 50 15 12-15 kg/m
YT-50A 16-30 0.75x2 2000 1750 520 220 60 150 200 58 20 12-15 kg/m
YT-50B 16-30 0.75x2 2500 2200 520 220 60 150 250 58 20 12-15 kg/m
YT-75A 18-27 0.75x2 2000 1700 520 250 60 150 250 68 20 15-22 kg/m
YT-75B 18-27 0.75x2 3000 2600 520 285 60 200 300 68 20 15-22 kg/m
YT-100 19-27 1.5x2 3000 2600 550 285 60 200 300 68 20 22-37 kg/m
